상세 정보 |
|||
| 와이어 코어 재료: | 구리선 | 붕대 감기 재료: | PVC 파이프 |
|---|---|---|---|
| 자동선 사양: | UL1569 또는 UL1007 22AWG, 18aWG | 커넥터 브랜드: | 오리지널 델파이 |
| 핀 재료: | 니켈 도금 | 와이어 보호: | 줄자 |
| 커넥터 보호: | 위치 | 마킹: | 와이어의 맞춤형 컨텐츠 인쇄 |
| 배선 장비 타입: | 신호 배선 하니스 | 조립 수업: | 주입 성형 |
| 최소 주문 수량: | 500pcs | 길이: | 사용자 정의 가능 |
| 재료: | PVC | 퓨즈 홀더: | 포함 |
| 모델 번호: | EDGARCN-WH-1023 | ||
| 강조하다: | ISO9001 Certified Golf Cart Wire Harness,1 Year Warranty Audio Cables Harness,15-20 Days Delivery Automotive Wiring Harness |
||
제품 설명

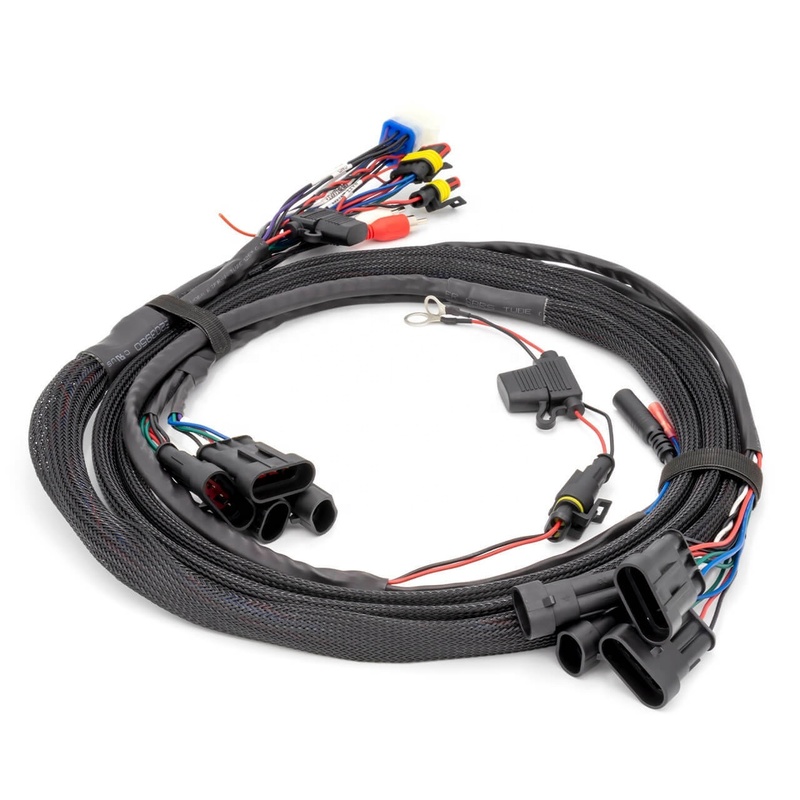

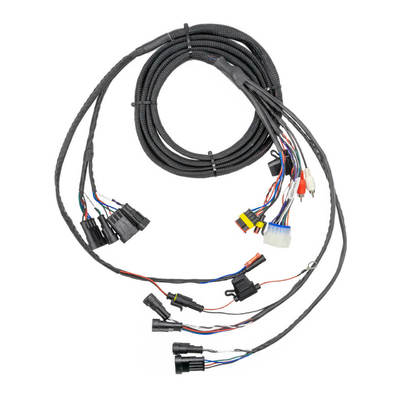

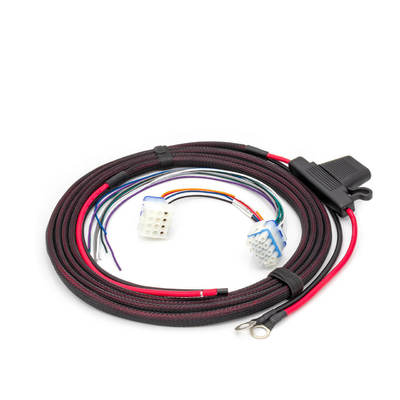

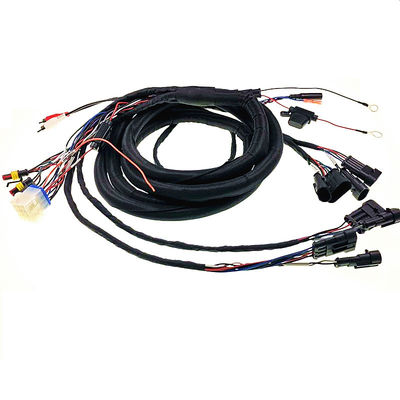

Golf Cart Wire Harness for Golf Cart Audio System

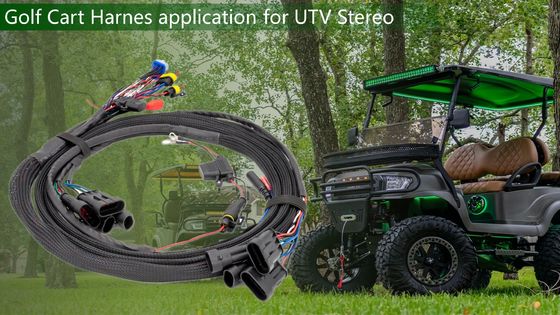

This high-quality golf cart wiring harness is specifically designed for UTV stereo systems, providing reliable connectivity for your golf cart audio setup. The harness features a built-in fuse holder for added protection and is manufactured to meet strict industry standards.
Key Features
- 100% brand new and high quality construction
- High sensitivity and easy to control
- Simple installation process
- Organized wire connections
- Includes fuse holder for circuit protection
- 1 harness per package
Technical Specifications
| Model Number | Edgarcn-WH-1023 |
|---|---|
| Application | Automobile, Herley speaker |
| Wire Core Material | Copper Wire |
| Industry Type | Automotive Wiring Harness |
| Bandaging Materials | PVC Pipe |
| Assembly Class | Injection Molding |
| Certifications | SGS, ROHS, ISO9001, UL |
| Wire Specification | UL1569 or UL1007 22AWG, 18AWG |
| Connector Brand | Original Delphi |
Packaging & Lead Time
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Estimated Time (Days) | 20 | 25 | To be negotiated | 30 days more |
Packaging details can be customized according to client specifications. International shipping options include DHL, UPS, FedEx, TNT, ARAMEX, and EMS, with choices for air, sea, or other methods.
Frequently Asked Questions
Q: Can you help with design?
A: Yes, we are an ODM/OEM company specializing in wire harness and cable assembly since 1999.
Q: When do you start the design process?
A: We provide initial sketches for discussion, then begin detailed drawings after order confirmation.
Q: What if quality issues occur?
A: Our quality team responds within 72 hours to resolve any issues.
Q: Do you have standard products to reduce lead time?
A: Yes, we have over 1000 developed molds and 5000+ existing products.
