상세 정보 |
|||
| 커넥터 유형: | FCI 54201416 PA66 방수 커넥터 | 터미널 크기: | 2.8mm |
|---|---|---|---|
| 위치 수: | 14 | 주택 자료: | PA (폴리 아미드) |
| 온도 범위: | -40 ° C ~ +125 ° C | 접촉 유지력: | > 90 n |
| 접촉 삽입부 힘: | <15 n | 연결기 짝결합력: | <90 n |
| 정점: | 5.25 x 6.40 mm (이중 줄) | 색상 옵션: | 검은 색, 밝은 회색, 짙은 회색, 자연 |
| 터미널 호환성: | Apex 2.8 mm 암컷/수컷 터미널 | 방수 등급: | 봉인 |
| 시리즈: | 정점 2.8 | 커넥터 성별: | 여성/남성 주택 옵션 |
| 재료 구성: | 플라스틱, 금속, 고무 | ||
| 강조하다: | APEX 2.8 Series Engine Plug Wire Connector,14 Position Automotive Wiring Harness,2 Years Warranty Cable Assembly |
||
제품 설명

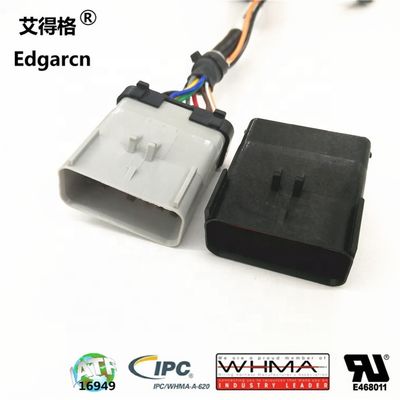

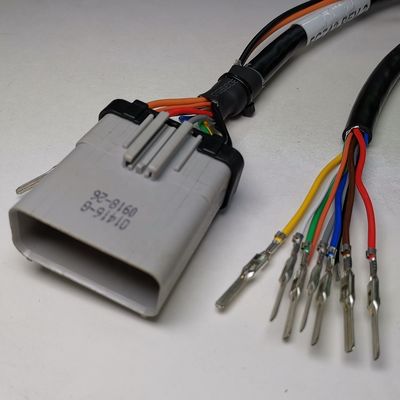

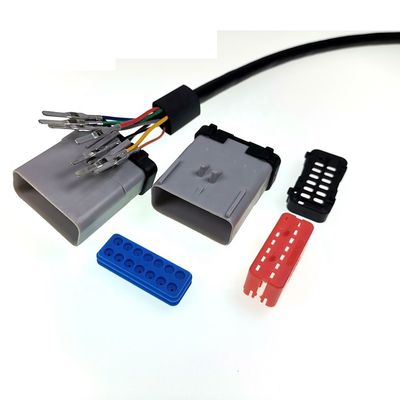

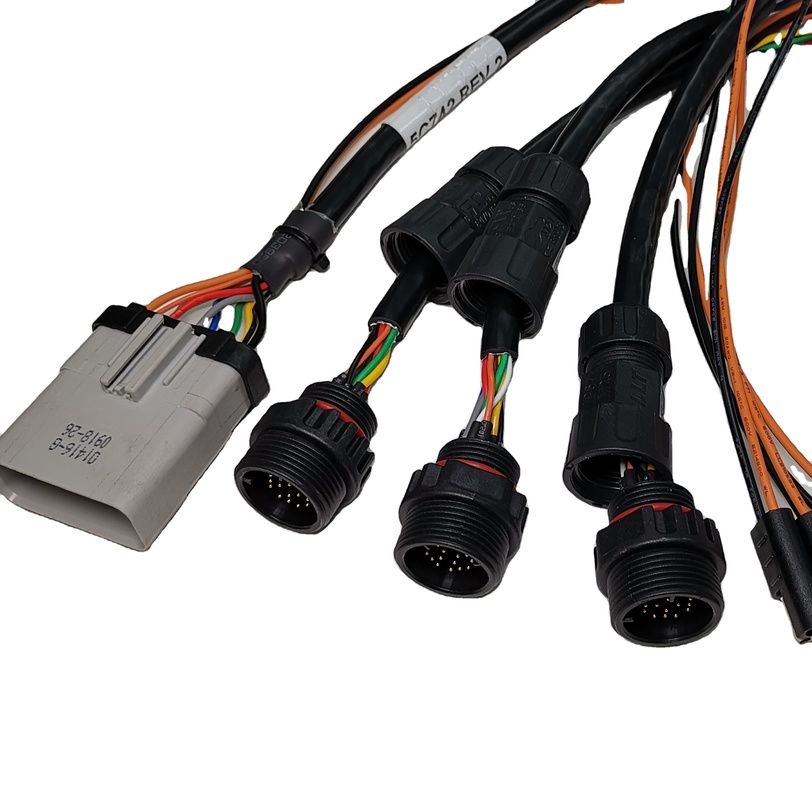

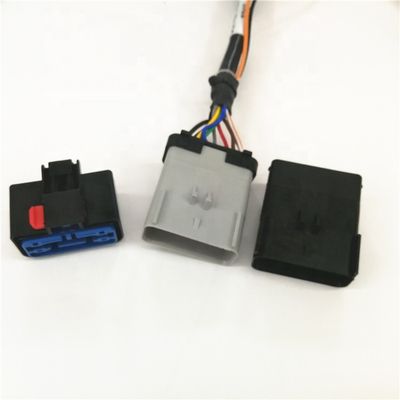

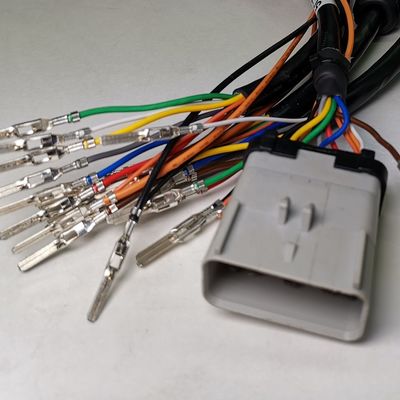

Waterproof Automotive Sealed APEX 2.8 Series 14 Position 54201416 Custom Engine Plug Wire Connector Harness Cable Assembly
Product Description
RP1226 Cable Assembly - FCI 54201416 Delphi PA66 waterproof connector with wire harness and cable assembly.
Custom Engine Sensor Plug Wire Connector Harness Cable Assembly specifically designed for Ford vehicles.
Key Features
- Waterproof automotive sealed Delphi FCI APEX 2.8 series connector
- 14 position grey connector with crimping cable assembly
- Valve cover glow plug connector pigtail wire harness
- FCI connector engine wire harness
- Instrument panel and cockpit connectors
- Coupling connectors with Apex 2/3/4/6/10/14 way coupling housings
OE Numbers
| Direct OE Cross | Manufacturer |
|---|---|
| 54201416 | FORD MOTOR COMPANY |
* This type harness kits for display only, will not sell out
Technical Specifications
- Temperature range: -40°C to +125°C
- Contact retention force: > 90 N
- Contact insertion force: < 15 N
- Connector mating force: < 90 N
- Housing material: PA (Polyamide)
- Usable terminals: Apex 2.8 mm female/male terminals
Packaging & Lead Time
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
Packaging details can be customized by client specification. International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, and EMS.
Frequently Asked Questions
Q: Can you help to design?
A: Yes, we are an ODM/OEM company specializing in wire harness & cable assembly since 1999.
Q: When will you start to help design?
A: We sketch simple solutions for initial discussion. After quotation and order placement, we begin detailed drawings and confirm with the client.
Q: What if quality issues occur?
A: Our quality and engineering team responds to quality issues within 72 hours, committed to long-term customer relationships and service excellence.
Q: Do you have standard products to reduce lead time?
A: Yes, we have over 1000 sets of molds and more than 5000 products developed over 20 years of specialization in wire harnesses.
